Tutorial Program Puzzle

Konsep Program PUZZLE

1. Deskripsi

Program yang kami buat ini adalah program yang dibuat dengan cara permainnannya mengacak urutan puzzle dan menyusunnya hingga tersusun seperti semula dengan maksimal 50 langkah.

2. Tujuan dan Manfaat

Tujuan dari program ini adalah memberi permainan yang bermanfaat untuk melatih otak kita untuk berpikir sistematis dan logis

3. Sasaran

Sasaran dari program adalah untuk anak 10 tahun keatas untuk melatih cara berpikir  dan program ini didesain dengan menampilkan gambar lawang sewu sebagai icon kota Semarang.

Langkah awal adalah buka dahulu Visual Basic 2010 :

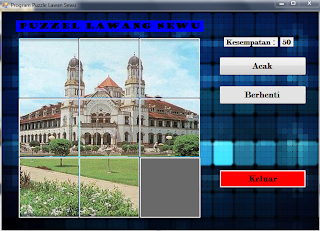

Form1 :

Komponen Toolbox yang digunakan sebagai berikut :

No.	Komponen	Properties	Keterangan
1	Form1	Name	Form1
		Text	Program Puzzle Lawang Sewu
		Background	Chartreuse
		Display	CentertoScreen
2	Label1	Name	Label1
		Text	Puzzle Lawang Sewu
3	Label2	Name	Label2
		Text	Kesempatan
25	Label3	Name	Label3
		Text	50
26	Button1	Name	Button1
		Text	1
27	Button2	Name	Button2
		Text	2
28	Button3	Name	Button3
		Text	3
26	Button14	Name	Button4
		Text	4
27	Button5	Name	Button5
		Text	5
28	Button6	Name	Button6
		Text	6
26	Button7	Name	Button7
		Text	7
27	Button8	Name	Button8
		Text	8
28	Button9	Name	Button9
		Text	9
26	Button10	Name	Button10
		Text	Acak
27	Button11	Name	Button11
		Text	Berhenti
28	Button12	Name	Button12
		Text	Keluar

Listingnya :

Public Class Form1

    Dim tuker As String

    Dim pindah As Object

    Dim acak As Integer

    Private Sub Button1_Click(ByVal sender As System.Object, ByVal e As

(Baris 1 mendeklarasikan tuker sebagai string)

(Baris 2 mendeklarasikan pindah sebagai objek)

(Baris 3 mendeklarasikan acak sebagai integer)

System.EventArgs) Handles Button1.Click

        If Button2.Text = "" Then

            pindah = Button1.BackgroundImage

            Button1.BackgroundImage = Button2.BackgroundImage

            Button2.BackgroundImage = pindah

            tuker = Button1.Text

            Button1.Text = Button2.Text

            Button2.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button4.Text = "" Then

            pindah = Button1.BackgroundImage

            Button1.BackgroundImage = Button4.BackgroundImage

            Button4.BackgroundImage = pindah

            tuker = Button1.Text

            Button1.Text = Button4.Text

            Button4.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 1 agar bisa pindah ke posisi 2 dan posisi 4)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)



Private Sub Button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button2.Click

        If Button1.Text = "" Then

            pindah = Button2.BackgroundImage

            Button2.BackgroundImage = Button1.BackgroundImage

            Button1.BackgroundImage = pindah

            tuker = Button2.Text

            Button2.Text = Button1.Text

            Button1.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button3.Text = "" Then

            pindah = Button2.BackgroundImage

            Button2.BackgroundImage = Button3.BackgroundImage

            Button3.BackgroundImage = pindah

            tuker = Button2.Text

            Button2.Text = Button3.Text

            Button3.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button5.Text = "" Then

            pindah = Button5.BackgroundImage

            Button5.BackgroundImage = Button2.BackgroundImage

            Button2.BackgroundImage = pindah

            tuker = Button5.Text

            Button5.Text = Button2.Text

            Button2.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 2 agar bisa pindah ke posisi 3,1 dan 5)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button3_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button3.Click

        If Button2.Text = "" Then

            pindah = Button3.BackgroundImage

            Button3.BackgroundImage = Button2.BackgroundImage

            Button2.BackgroundImage = pindah

            tuker = Button3.Text

            Button3.Text = Button2.Text

            Button2.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button6.Text = "" Then

            pindah = Button3.BackgroundImage

            Button3.BackgroundImage = Button6.BackgroundImage

            Button6.BackgroundImage = pindah

            tuker = Button3.Text

            Button3.Text = Button6.Text

            Button6.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 3 agar bisa pindah ke posisi 2 dan 6)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button4_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button4.Click

        If Button1.Text = "" Then

            pindah = Button4.BackgroundImage

            Button4.BackgroundImage = Button1.BackgroundImage

            Button1.BackgroundImage = pindah

            tuker = Button4.Text

            Button4.Text = Button1.Text

            Button1.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button5.Text = "" Then

            pindah = Button4.BackgroundImage

            Button4.BackgroundImage = Button5.BackgroundImage

            Button5.BackgroundImage = pindah

            tuker = Button4.Text

            Button4.Text = Button5.Text

            Button5.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button7.Text = "" Then

            pindah = Button4.BackgroundImage

            Button4.BackgroundImage = Button7.BackgroundImage

            Button7.BackgroundImage = pindah

            tuker = Button4.Text

            Button4.Text = Button7.Text

            Button7.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 4 agar bisa pindah ke posisi 1,5 dan 7)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button5_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button5.Click

        If Button2.Text = "" Then

            pindah = Button5.BackgroundImage

            Button5.BackgroundImage = Button2.BackgroundImage

            Button2.BackgroundImage = pindah

            tuker = Button5.Text

            Button5.Text = Button2.Text

            Button2.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button4.Text = "" Then

            pindah = Button5.BackgroundImage

            Button5.BackgroundImage = Button4.BackgroundImage

            Button4.BackgroundImage = pindah

            tuker = Button5.Text

            Button5.Text = Button4.Text

            Button4.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button6.Text = "" Then

            pindah = Button5.BackgroundImage

            Button5.BackgroundImage = Button6.BackgroundImage

            Button6.BackgroundImage = pindah

            tuker = Button5.Text

            Button5.Text = Button6.Text

            Button6.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button8.Text = "" Then

            pindah = Button5.BackgroundImage

            Button5.BackgroundImage = Button8.BackgroundImage

            Button8.BackgroundImage = pindah

            tuker = Button5.Text

            Button5.Text = Button8.Text

            Button8.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        End If

        If Button2.Text = "" Then

            tuker = Button5.Text

            Button5.Text = Button2.Text

            Button2.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button4.Text = "" Then

            tuker = Button5.Text

            Button5.Text = Button4.Text

            Button4.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button6.Text = "" Then

            tuker = Button5.Text

            Button5.Text = Button6.Text

            Button6.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button8.Text = "" Then

            tuker = Button5.Text

            Button5.Text = Button8.Text

            Button8.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 4 agar bisa pindah ke posisi 2,4,6 dan 8)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button6_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button6.Click

        If Button3.Text = "" Then

            pindah = Button6.BackgroundImage

            Button6.BackgroundImage = Button3.BackgroundImage

            Button3.BackgroundImage = pindah

            tuker = Button6.Text

            Button6.Text = Button3.Text

            Button3.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button5.Text = "" Then

            pindah = Button6.BackgroundImage

            Button6.BackgroundImage = Button5.BackgroundImage

            Button5.BackgroundImage = pindah

            tuker = Button6.Text

            Button6.Text = Button5.Text

            Button5.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button9.Text = "" Then

            pindah = Button6.BackgroundImage

            Button6.BackgroundImage = Button9.BackgroundImage

            Button9.BackgroundImage = pindah

            tuker = Button6.Text

            Button6.Text = Button9.Text

            Button9.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 6 agar bisa pindah ke posisi 3,5 dan 9)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button7_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button7.Click

        If Button4.Text = "" Then

            pindah = Button7.BackgroundImage

            Button7.BackgroundImage = Button4.BackgroundImage

            Button4.BackgroundImage = pindah

            tuker = Button7.Text

            Button7.Text = Button4.Text

            Button4.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button8.Text = "" Then

            pindah = Button7.BackgroundImage

            Button7.BackgroundImage = Button8.BackgroundImage

            Button8.BackgroundImage = pindah

            tuker = Button7.Text

            Button7.Text = Button8.Text

            Button8.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 4 agar bisa pindah ke posisi 4 dan 8)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button8_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button8.Click

        If Button5.Text = "" Then

            pindah = Button8.BackgroundImage

            Button8.BackgroundImage = Button5.BackgroundImage

            Button5.BackgroundImage = pindah

            tuker = Button8.Text

            Button8.Text = Button5.Text

            Button5.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button7.Text = "" Then

            pindah = Button8.BackgroundImage

            Button8.BackgroundImage = Button7.BackgroundImage

            Button7.BackgroundImage = pindah

            tuker = Button8.Text

            Button8.Text = Button7.Text

            Button7.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button9.Text = "" Then

            pindah = Button8.BackgroundImage

            Button8.BackgroundImage = Button9.BackgroundImage

            Button9.BackgroundImage = pindah

            tuker = Button8.Text

            Button8.Text = Button9.Text

            Button9.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 8 agar bisa pindah ke posisi 5,7 dan 9)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Button9_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button9.Click

        If Button6.Text = "" Then

            pindah = Button9.BackgroundImage

            Button9.BackgroundImage = Button6.BackgroundImage

            Button6.BackgroundImage = pindah

            tuker = Button9.Text

            Button9.Text = Button6.Text

            Button6.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

        ElseIf Button8.Text = "" Then

            pindah = Button9.BackgroundImage

            Button9.BackgroundImage = Button8.BackgroundImage

            Button8.BackgroundImage = pindah

            tuker = Button9.Text

            Button9.Text = Button8.Text

            Button8.Text = tuker

            Label2.Text = Int(Label2.Text) - 1

            If Label2.Text = "0" Then

                MsgBox("Game Over")

                Application.Restart()

            End If

            benar()

        End If

    End Sub

(Membuat logika pemindahan dari posisi 9 agar bisa pindah ke posisi 6 dan 8)

(Jika langkah habis kalah)

(Jika sudah tersusun maka menang)

    Private Sub Clock_Tick(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Clock.Tick

        pindah = Button9.BackgroundImage

        Button9.BackgroundImage = Button4.BackgroundImage

        Button4.BackgroundImage = pindah

        tuker = Button9.Text

        Button9.Text = Button4.Text

        Button4.Text = tuker

        pindah = Button9.BackgroundImage

        Button9.BackgroundImage = Button3.BackgroundImage

        Button3.BackgroundImage = pindah

        tuker = Button9.Text

        Button9.Text = Button3.Text

        Button3.Text = tuker

        pindah = Button2.BackgroundImage

        Button2.BackgroundImage = Button7.BackgroundImage

        Button7.BackgroundImage = pindah

        tuker = Button2.Text

        Button2.Text = Button7.Text

        Button7.Text = tuker

        pindah = Button2.BackgroundImage

        Button2.BackgroundImage = Button6.BackgroundImage

        Button6.BackgroundImage = pindah

        tuker = Button2.Text

        Button2.Text = Button6.Text

        Button6.Text = tuker

        pindah = Button3.BackgroundImage

        Button3.BackgroundImage = Button8.BackgroundImage

        Button8.BackgroundImage = pindah

        tuker = Button3.Text

        Button3.Text = Button8.Text

        Button8.Text = tuker

        pindah = Button3.BackgroundImage

        Button3.BackgroundImage = Button1.BackgroundImage

        Button1.BackgroundImage = pindah

        tuker = Button3.Text

        Button3.Text = Button1.Text

        Button1.Text = tuker

        pindah = Button5.BackgroundImage

        Button5.BackgroundImage = Button8.BackgroundImage

        Button8.BackgroundImage = pindah

        tuker = Button5.Text

        Button5.Text = Button8.Text

        Button8.Text = tuker

        pindah = Button5.BackgroundImage

        Button5.BackgroundImage = Button7.BackgroundImage

        Button7.BackgroundImage = pindah

        tuker = Button5.Text

        Button5.Text = Button7.Text

        Button7.Text = tuker

        pindah = Button6.BackgroundImage

        Button6.BackgroundImage = Button1.BackgroundImage

        Button1.BackgroundImage = pindah

        tuker = Button6.Text

        Button6.Text = Button1.Text

        Button1.Text = tuker

    End Sub

(Posisi mengacak puzzle dengan memindahkan button dengan sistem timer)

    Private Sub Button10_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button10.Click

        Clock.Enabled = True

        acak = Rnd() * 10

    End Sub

(Membuat puzzle mengacak)

    Private Sub Button11_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button11.Click

        Clock.Enabled = False

    End Sub

(Membuat puzzle berhenti mengacak)

    Private Sub Button12_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles Button12.Click

            Me.Close()

    End Sub

(Menclose Program)

    Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Me.Text = "Program Puzzle Lawan Sewu"

        Me.CenterToScreen()

    End Sub

    Private Sub benar()

        If (Button1.Text = "1" And Button2.Text = "2" And Button3.Text = "3" And Button4.Text = "4" And Button5.Text = "5" And Button6.Text = "6" And Button7.Text = "7" And Button8.Text = "8" And Button9.Text = "") Then

            MsgBox("Anda Telah Menyelesaikan Puzzle Dengan Baik!", 0, "SELAMAT!")

        End If

    End Sub

(Membuat kondisi dimana kalau semua puzzle sudah tersusun sesuai urutan  maka akan keluar messagebox “Anda Telah Menyelesaikan Puzzle Dengan Baik!”)

End Class
